OAuth2 Proxy

Add user authentication with GitHub, Google, Azure AD, and other OAuth providers by integrating agentgateway with OAuth2 Proxy.

Agentgateway can integrate with OAuth2 Proxy to add user authentication through GitHub, Google, Azure AD, and other OAuth providers. Agentgateway uses an external authorization (extAuthz) policy to delegate authentication checks to OAuth2 Proxy, which redirects unauthenticated users to the provider’s login page.

This guide uses GitHub as the example provider. For other providers, see Use other OAuth providers.

Before you begin​

Step 1: Create a GitHub OAuth application​

  1. Go to GitHub Developer Settings.
  2. Click OAuth Apps > New OAuth App.
  3. Fill in the application details.
    • Application name: agentgateway dev, or any name you choose.
    • Homepage URL: http://localhost:3000
    • Authorization callback URL: http://localhost:4180/oauth2/callback
  4. Click Register application.
  5. Copy the Client ID.
  6. Click Generate a new client secret and copy the Client Secret.

Step 2: Set up your environment​

  1. Create a working directory.

    mkdir oauth2-proxy-test && cd oauth2-proxy-test

  2. Save your GitHub OAuth credentials as environment variables.

    export OAUTH2_PROXY_CLIENT_ID=<your-github-client-id>
    export OAUTH2_PROXY_CLIENT_SECRET=<your-github-client-secret>

  3. Generate a random cookie secret.

    export OAUTH2_PROXY_COOKIE_SECRET=$(python3 -c 'import os,base64; print(base64.b64encode(os.urandom(32)).decode()[:32])')

Step 3: Start OAuth2 Proxy​

  1. Run OAuth2 Proxy in Docker.

    docker run -d --name oauth2-proxy \
      -p 4180:4180 \
      --add-host=host.docker.internal:host-gateway \
      -e OAUTH2_PROXY_CLIENT_ID=$OAUTH2_PROXY_CLIENT_ID \
      -e OAUTH2_PROXY_CLIENT_SECRET=$OAUTH2_PROXY_CLIENT_SECRET \
      -e OAUTH2_PROXY_COOKIE_SECRET=$OAUTH2_PROXY_COOKIE_SECRET \
      -e OAUTH2_PROXY_COOKIE_SECURE=false \
      quay.io/oauth2-proxy/oauth2-proxy:latest \
      --provider=github \
      --email-domain='*' \
      --upstream=file:///dev/null \
      --http-address=0.0.0.0:4180 \
      --set-xauthrequest \
      --reverse-proxy=true

  2. Verify that OAuth2 Proxy is running.

    docker logs oauth2-proxy

    Example output:

    [2026/08/06 20:34:54] [oauthproxy.go:180] OAuthProxy configured for GitHub Client ID: $OAUTH2_PROXY_CLIENT_ID

Step 4: Configure agentgateway​

  1. Create a config.yaml file. The configuration routes /oauth2/* requests to OAuth2 Proxy for login and callback handling, and protects the MCP application with an extAuthz policy that checks authentication and extracts the user’s identity.

    # yaml-language-server: $schema=https://agentgateway.dev/schema/config
    frontendPolicies:
      accessLog:
        add:
          # Log the authenticated user's GitHub username and email
          github.user: 'extauthz.githubUser'
          github.email: 'extauthz.githubEmail'

    gateways:
      default:
        port: 3000
        protocol: HTTP
    routes:
    # Route OAuth2 Proxy endpoints (login, callback, and so on)
    - name: oauth2-proxy
      matches:
      - path:
          pathPrefix: /oauth2
      policies:
        urlRewrite:
          authority: none
      backends:
      - host: localhost:4180

    # Protected MCP application
    - name: application
      backends:
      - mcp:
          targets:
          - name: everything
            stdio:
              cmd: npx
              args: ["@modelcontextprotocol/server-everything"]
      policies:
        cors:
          allowOrigins: ["*"]
          allowHeaders: ["*"]
          exposeHeaders: ["Mcp-Session-Id"]
        extAuthz:
          host: localhost:4180
          includeRequestHeaders:
          - cookie
          protocol:
            http:
              # Check authentication status
              path: '"/oauth2/auth"'
              # Redirect unauthenticated users to login
              redirect: '"/oauth2/start?rd=" + request.path'
              # Extract user info from OAuth2 Proxy response headers
              metadata:
                githubUser: response.headers["x-auth-request-user"]
                githubEmail: response.headers["x-auth-request-email"]
              addRequestHeaders:
                x-forwarded-host: request.host
              includeResponseHeaders:
              - x-auth-request-user

    Review the following table to understand this configuration.

    SettingDescription
    frontendPolicies.accessLog.addLogs the GitHub username and email from authenticated requests.
    routes (oauth2-proxy)Routes /oauth2/* requests to OAuth2 Proxy for login and callback handling.
    routes (application)The protected MCP endpoint with external authorization.
    extAuthz.hostThe OAuth2 Proxy address for authentication checks.
    extAuthz.protocol.http.pathThe endpoint that OAuth2 Proxy uses to validate authentication.
    extAuthz.protocol.http.redirectWhere to send unauthenticated users.
    extAuthz.protocol.http.metadataExtracts user information from the OAuth2 Proxy response headers.

  2. Start agentgateway

    agentgateway -f config.yaml

Step 6: Test the authentication flow​

  1. Send an unauthenticated request. Because the request has no session cookie, agentgateway redirects it to the login flow.

    curl -i http://localhost:3000/mcp

    Example output:

    HTTP/1.1 302 Found
    location: /oauth2/start?rd=/mcp

  2. Test the flow in a browser.

    1. Open http://localhost:3000/mcp.

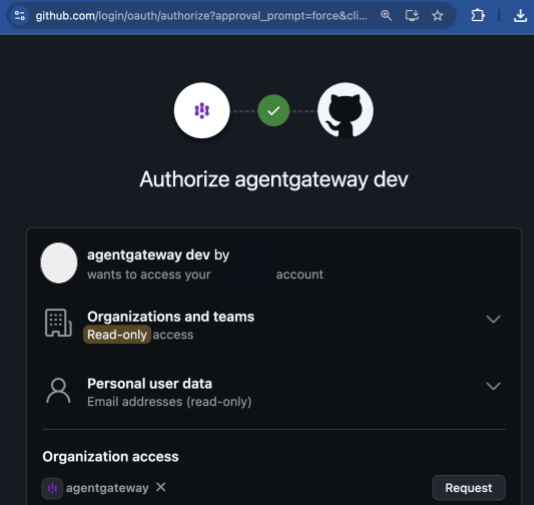

    2. You are redirected to GitHub for authentication.

    3. After you log in, you are redirected back to the MCP endpoint.

    4. In the terminal where you are running agentgateway, review the logs. Notice your GitHub username and email in the github.user and github.email access log fields.

      Example output:

      2026-08-06T21:10:58.810727Z     info    request gateway=default/default listener=default route=default/application src.addr=[::1]:52638 http.method=GET http.host=localhost http.path=/ http.version=HTTP/1.1 http.status=406 protocol=mcp error="mcp: client must accept text/event-stream" reason=MCP duration=2ms github.user="<USERNAME>" github.email="<[email protected]>"

Use other OAuth providers​

OAuth2 Proxy supports many providers. To use a different provider, update the Docker command from Step 3.

docker run -d --name oauth2-proxy \
  -p 4180:4180 \
  --add-host=host.docker.internal:host-gateway \
  -e OAUTH2_PROXY_CLIENT_ID=$GOOGLE_CLIENT_ID \
  -e OAUTH2_PROXY_CLIENT_SECRET=$GOOGLE_CLIENT_SECRET \
  -e OAUTH2_PROXY_COOKIE_SECRET=$OAUTH2_PROXY_COOKIE_SECRET \
  -e OAUTH2_PROXY_COOKIE_SECURE=false \
  quay.io/oauth2-proxy/oauth2-proxy:latest \
  --provider=google \
  --email-domain='*' \
  --upstream=file:///dev/null \
  --http-address=0.0.0.0:4180 \
  --set-xauthrequest \
  --reverse-proxy=true

docker run -d --name oauth2-proxy \
  -p 4180:4180 \
  --add-host=host.docker.internal:host-gateway \
  -e OAUTH2_PROXY_CLIENT_ID=$AZURE_CLIENT_ID \
  -e OAUTH2_PROXY_CLIENT_SECRET=$AZURE_CLIENT_SECRET \
  -e OAUTH2_PROXY_COOKIE_SECRET=$OAUTH2_PROXY_COOKIE_SECRET \
  -e OAUTH2_PROXY_COOKIE_SECURE=false \
  quay.io/oauth2-proxy/oauth2-proxy:latest \
  --provider=azure \
  --oidc-issuer-url=https://login.microsoftonline.com/$AZURE_TENANT_ID/v2.0 \
  --email-domain='*' \
  --upstream=file:///dev/null \
  --http-address=0.0.0.0:4180 \
  --set-xauthrequest \
  --reverse-proxy=true

Production considerations​

For production deployments, consider the following.

  • Set OAUTH2_PROXY_COOKIE_SECURE=true and use HTTPS.
  • Restrict email-domain to your organization’s domain.
  • Use a persistent cookie secret instead of a randomly generated one.
  • See the OAuth2 Proxy documentation for additional security options.

Cleanup​

  1. Stop and remove the OAuth2 Proxy container.

    docker stop oauth2-proxy && docker rm oauth2-proxy

  2. Remove the working directory with the agentgateway config file.

    cd .. && rm -rf oauth2-proxy-test

  3. In your GitHub account’s developer settings, delete the OAuth app.
